Coating gauge-QC5 DLC

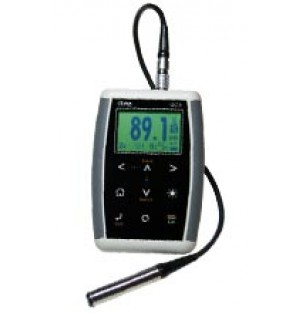

Our QC5 DLC is the most complete and advanced dry coating thickness gauge available from Demeq. It uses a combined Ferrous / Non-Ferrous probe to automatically detect the type of substrate, 9 calibration modes, calibration memories, a continuos measurement mode and much more.

With the QC5 DLC you can also send data stored in the unit memory to a PC using DMQ DataCenter software.

Qty

Download A Brochure

Description
Specifications

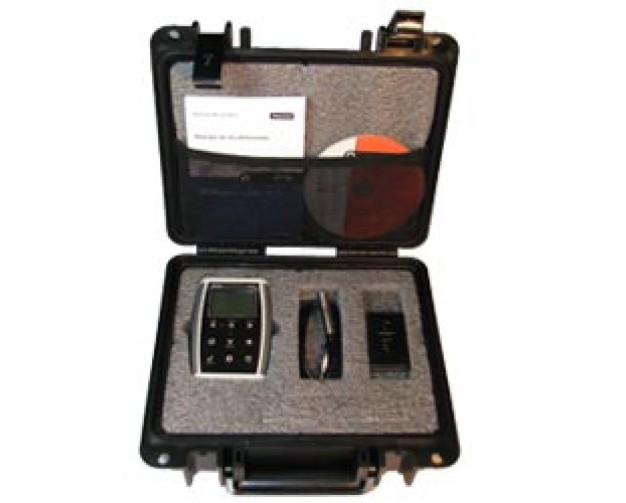

DMQ QC5 DLC standard configuration

DMQ QC5 DLC electronic unit
DMQ straight combined probe
Ferrous & non-ferrous calibration bases
3 calibration shims
Pendrive with DMQ DataCenter software
USB cable
Printed user manual
High impact carrying case
Certificate of conformity

Batteries:

2 x AA 1.5v Alkaline
2 x AA 1.2v Ni-MH Rechargeable

Battery Life:

100 hours with backlight off

Battery Indicator:

On all screens with a low level alarm

Auto-Off:

Programmable 1 to 120 minutes

Warranty

Electronic Unit:5 year limited
Accessories:6 months

Request a Quote
