Underwater UT gauge

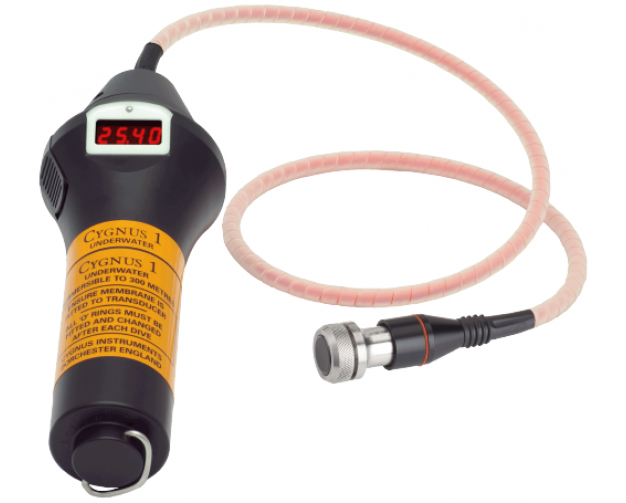

Cygnus Underwater Ultrasonic Thickness Gauge

Measures remaining metal thickness on corroded and coated structures

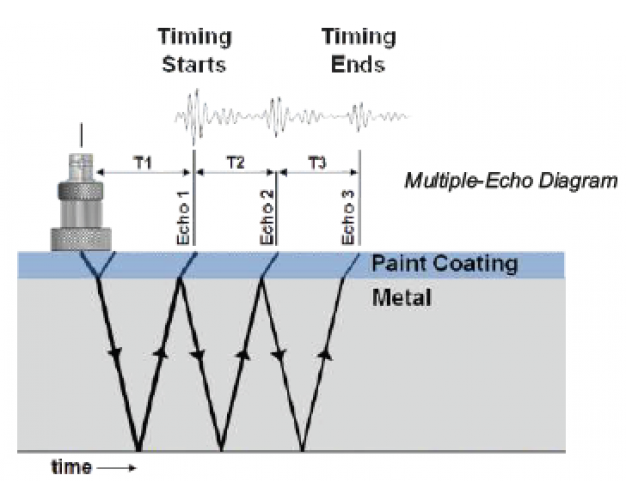

All measurements are error checked using 3 return echoes to give repeatable, reliable results
Accepted by all major classification societies
Greatly reduces inspection time and costs
Echo strength indicator to aid measurement.

RINA Type-Approved (Certificate No.2009DGPO787)
Auto Probe Recognition (APR)
Deep Coat mode for measuring through coatings upto 20 mm (0.787 inch) thick (upon request)
Easy calibration using one single button
Rugged, durable, shock-proof construction
Stable calibration – linear accuracy – no zero adjustment
Large bright LED display for poor visibility
Pressure rated to 300 m (1,000 ft) depth
Heavy duty sealed unit with double ‘O’ ring protection
Self verification of measurements to ensure accuracy
Echo strength indicator to aid measurement
All probes are protected by a membrane to prevent damage
Various probe options
Two rechargeable battery packs with charger
Fixed head probe option for single handed use.

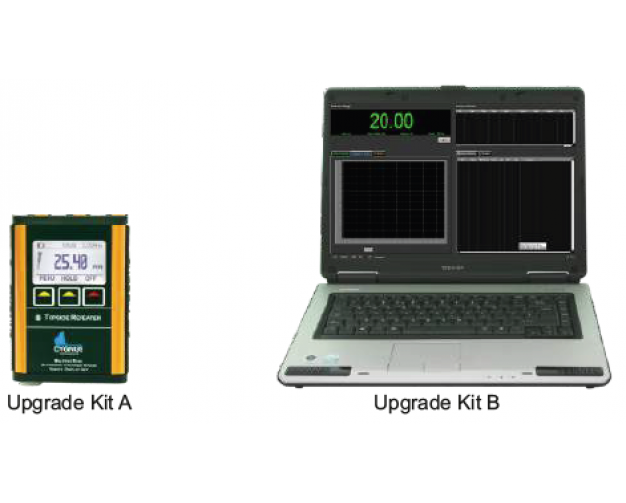

Upgrade Kit A: This topside display option is a hand
held surface repeater. It has a large LCD display in an
IP65 sealed housing.

Upgrade Kit B: This uses CygLink (Windows based
software) installed on a computer. This displays real-time
readings which can then be logged.
