Porosity & cable tester

DCCT mains powered testers are particularly suitable for the automatic testing of porosity in non-conductive coatings. Incorporating a resettable high speed counter, they are ideal for use within production processes.

The units are used extensively in the manufacturing industry for checking cables, plastic sheets, battery cases, moulded components and non-conductive coatings on steel pipes.

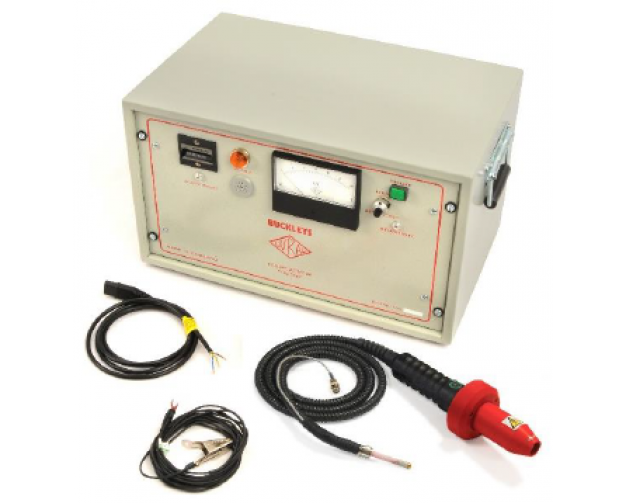

A range of four DCCT testers is available with output voltage ranges of 1-7.5kV (ref: C0H), 2-15kV (ref: C1H), 4-30kV (ref: C2H) and 5-40kV (ref: C3H). These models are supplied complete with a test probe handle installed which can be used with a suitable electrode for manual testing of components. Alternatively, the DCCT can be supplied with a high-voltage lead; please see data sheet C0 for more details.

Qty

Description
Specifications

Housed in a robust metal case
Output control for easy adjustment of test voltage
Clearly readable kV meter
Resettable high speed counter
Variable alarm and sensitivity controls
Visual and audible alarms
Suitable for low or high speed testing
Conforms to DC testing of cables BS EN 5056:2002 (formerly BS 5099)
Calibration certificate to National Standards supplied
CE approved

ADDITIONAL INFORMATION

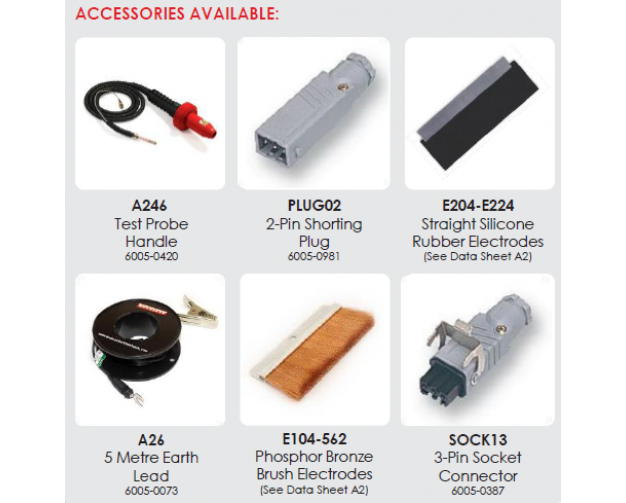

For testing cables, the unit can be used with a high- voltage electrode box using brush, air-gap or ball chain curtain electrodes. Material suitable for the electrodes can be supplied – details on request.

Models available:

C0H: DCCT 1-7.5 kV (6002-0005)
C1H: DCCT 2-15 kV (6002-0007) C2H: DCCT 4-30 kV (6002-0009) C3H: DCCT 5-40 kV (6002-0011)

Maximum current: < 1mA
Suitable for continuous operation
Meter accuracy +/- 2%
Mains supply voltage: 110/120V or 220/240V AC 50/60 Hz
Dimensions: 50cm x 30cm x 33cm
Weight (Unit only): 17Kg
Packed weight (with handle): 23Kg
Dimensions (packed): 60cm x 60cm x 60cm

Note: Due to ongoing technical developments, all stated information is typical and is subject to change without notice or obligation.
