    Mannings power unit

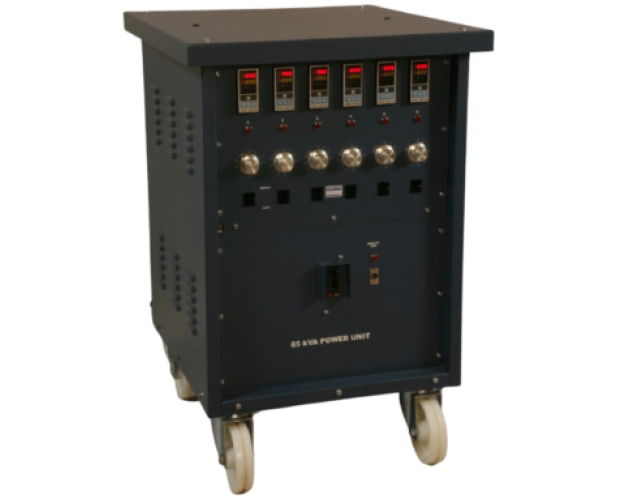

    "STORK" MANNINGS TYPE TRANSFORMER POWER UNIT (6 OUTPUT CHANNEL)

    Mannings Type mobile transformers units have achieved a worldwide reputation for good design, quality and reliability.

    Choice of 6 channel versions make the units ideally suitable for pre & post weld heat treatment of pipework and vessels. Housed in a Zintec steel wheeled cabinet, the unit is mobile, well balanced and finished in Blue. These units provide a 65V supply for powering various types of low voltage heating elements. The output channels are controlled by means of energy regulators and temperature controllers, provision is also made for external control from any suitable programmer via a panel mounted control plug. Each channel has its own auto/manual switch so any combination of channels can be operated in either auto or manual mode. The units are protected against over current or over temperature conditions.
    • Qty down-arrow down-arrow
    imgDownload A Brochure imgAdd to Quote

    Features:

    • Outputs for 60V heaters
    • Controllers can be set to operate in °C or °F
    • Displays set point and work piece temperature
    • Neon shows ‘power on’ for each output channel
    • Fitted with temperature controllers and energy regulators as standard
    • Core winding thermostats provide automatic protection against transformer coil overheating
    • Primary over-current protection provided by a three-phase circuit breaker
    • Multi pin output to connect external programmer
    • Selector switches per channel to allow for internal temperature control or external
    • Safety plugs fitted as standard to all 65V outputs

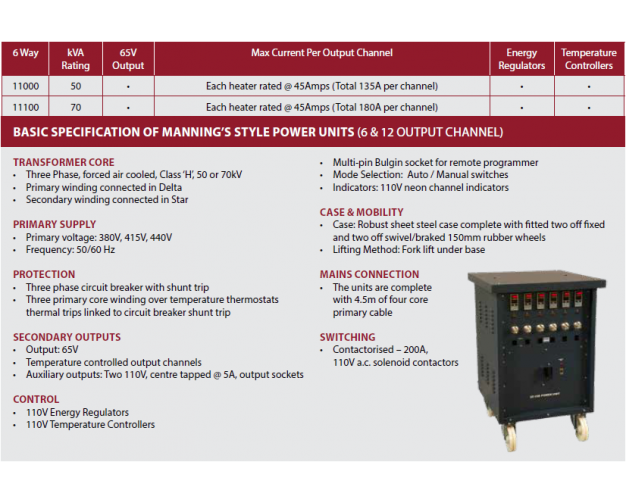

    TRANSFORMER CORE

    • Three Phase, forced air cooled, Class ‘H’, 50 or 70kV
    • Primary winding connected in Delta
    • Secondary winding connected in Star

    PRIMARY SUPPLY

    • Primary voltage: 380V, 415V, 440V
    • Frequency: 50/60 Hz

    PROTECTION

    • Three phase circuit breaker with shunt trip
    • Three primary core winding over temperature thermostats
      thermal trips linked to circuit breaker shunt trip

    SECONDARY OUTPUTS

    • Output: 65V
    • Temperature controlled output channels
    • Auxiliary outputs: Two 110V, centre tapped @ 5A, output sockets

    CONTROL

    • 110V Energy Regulators
    • 110V Temperature Controllers
    • Multi-pin Bulgin socket for remote programmer
    • Mode Selection: Auto / Manual switches
    • Indicators: 110V neon channel indicators

    CASE & MOBILITY

    • Case: Robust sheet steel case complete with fitted two off fixed
      and two off swivel/braked 150mm rubber wheels
    • Lifting Method: Fork lift under base

    MAINS CONNECTION

    • The units are complete with 4.5m of four core primary cable

    SWITCHING

    • Contactorised – 200A,110V a.c. solenoid contactors
