Temperature recorder

"STORK" CHINO AH4712 & 4724 (12 OR 24 POINT) Hybrid temperature chart recorder

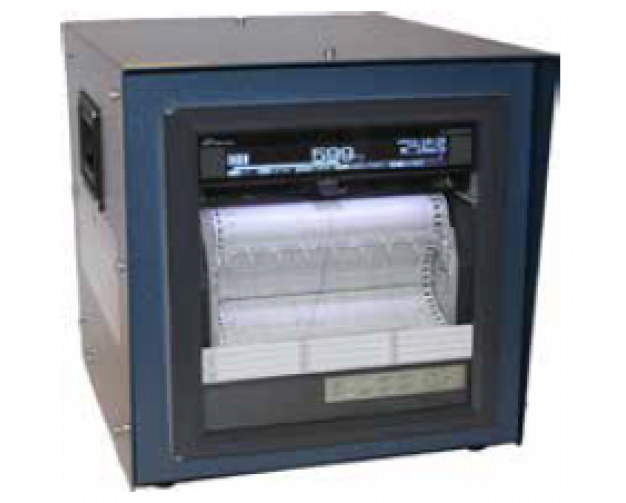

The AH Series Chino hybrid temperature recorder is a popular recorder which gives the option of printing to chart and also saving the data to an SD card which can then in turn be downloaded to you PC. The recorder has bright and clear, easy to read LCD display. Various measuring and recording setting can be easily set by the operator on the control panel. The unit is designed for pre and post weld heat treatment processes utilising type ‘K’ thermocouples. Contained within a rugged, cost effective, mild steel case, the recorder is designed and built to withstand normal site conditions.

For process monitoring by the operator in any site light conditions, the level of illumination of the chart and the scale plate can be adjusted by the operator.

The AH Series Chino recorder can also be supplied as a panel mounted version.

"STORK" CHINO EH3000 (12 POINT) temperature chart recorder

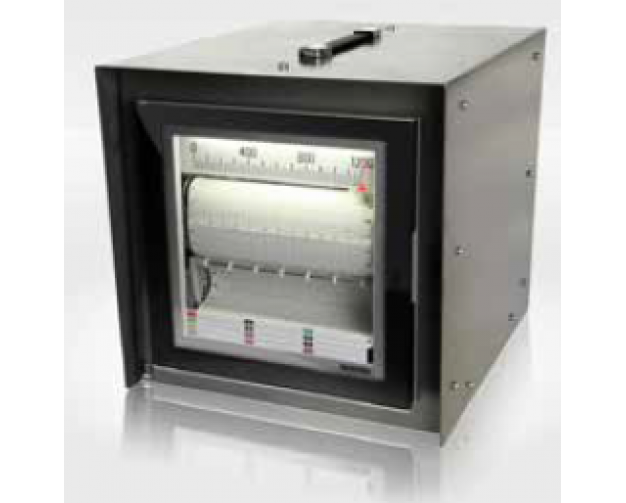

The EH Series Chino temperature recorder is a popular,basic, analogue alternative to digital recorders. The Chino temperature chart recorder is designed for pre and post weld heat treatment processes utilising type ‘K’ thermocouples.Contained within a rugged, cost effective, mild steel case, the recorder is designed and built to withstand normal site conditions. Each input is individually recorded on the chart paper using a multi coloured printing system for clear identification of each thermocouple input trace. For process monitoring by the operator in any site light conditions, the level of illumination of the chart and the scale plate can be adjusted by the operator.

The EH Series Chino recorder can also be supplied as a panel mounted version

Qty

Description
Specifications

AH Series Features:

Standard scale supplied is 0 – 1200°C
Type ‘K’ polarised sockets fitted to the rear of the case
SD card to export data to PC
Ethernet port for Web viewer and email alarm notifications
Chart end notification
The chart drive speed can selected to be 12.5, 25, 50, 75, 100 or 150mm per hour
Chart and scale illuminates for viewing in low light
Reliable
Simple to calibrate

EH Series Features:

Standard scale supplied is 0 – 1200°C
Type ‘K’ polarised sockets fitted to the rear of the case
Alternative scales available upon request
Easy access to power supply and chart drive switches
The chart drive speed can selected to be 12.5, 25, 50,75, 100 or 150mm per hour
Manual fast forward chart advance
Printer refill warning visible on chart
Ease of operation
Reliable
Low maintenance
Simple to calibrate

AH Series general specifications

POWER REQUIREMENT

Power supply voltage : 100 to 240V a.c
Power supply frequency : 50Hz/60Hz

OPERATING ENVIRONMENT

Ambient temperature : 0°C to 50°C
Ambient humidity : 30% to 90% RH

PHYSICAL

Scale length : 180mm
Accuracy : +/- 0.5% of input scan
Dead band : 0.4% of input span
Balancing time : Approximately 2 seconds
Chart : Fanfold 20 metres long
Channels : 12 or 24
Stamping interval : 6 seconds
Stamping system : 12 colour
Weight : 17.5kg
Illumination : 3 x L.E.D.’s

EH Series specifications

POWER REQUIREMENT

Power supply voltage: 100 to 240V a.c
Power supply frequency: 50Hz/60Hz

OPERATING ENVIRONMENT

Ambient temperature: 0°C to 50°C
Ambient humidity: 30% to 90% RH

POWER REQUIREMENT

Power supply voltage: 100 to 240V a.c
Power supply frequency: 50Hz/60Hz

OPERATING ENVIRONMENT

Ambient temperature: 0°C to 50°C
Ambient humidity: 30% to 90% RH
